KTechlab is an Open Source IDE for electronic and PIC microcontroller circuit design and simulation; it is a circuit designer with auto-routing and a simulator of common electronic components and logic elements.
KTechlab supports programming microcontrollers using a graphical flowchart based language called flowcode.

Overview

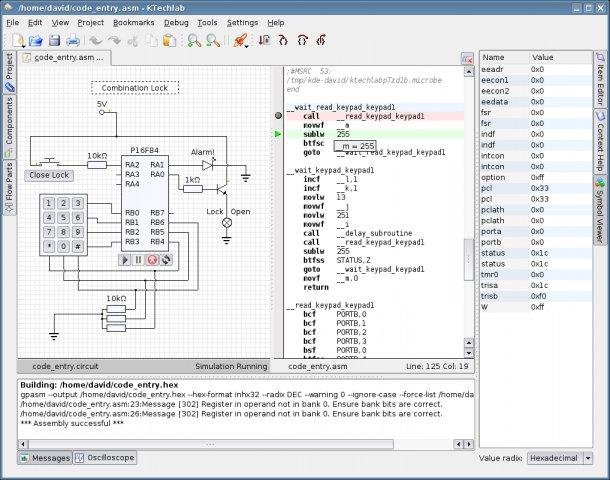

KTechlab has been designed to be as easy to use and unintrusive as possible; all components and FlowParts have context sensitive help, and simulating electronics is as simple as dragging components onto the work area and creating connectors that autoroute themselves between their pins. FlowCode allows users new to PICs to instantly create their own programs, while the electronic simulation allows stepping through a PIC's assembly program inside a circuit.

Features
Project based workflow, possibility to create subprojects
Support multiple document types

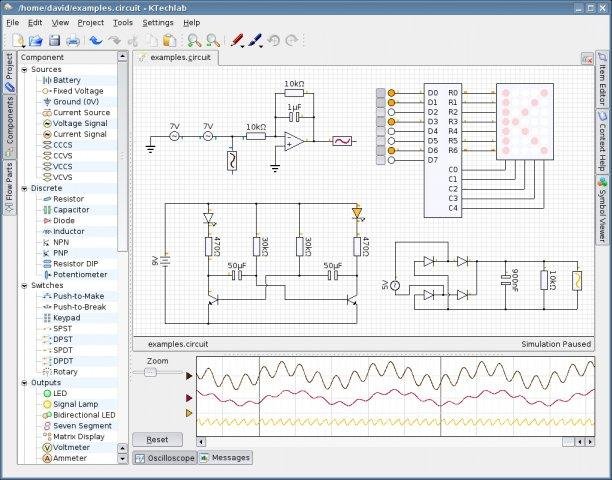

Circuit, that can be simulated

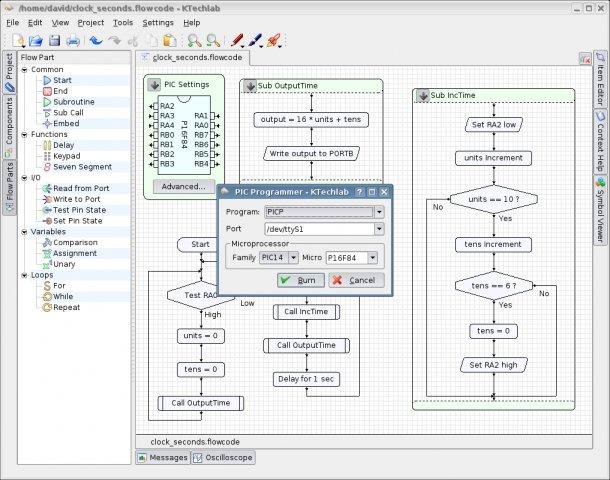

Flowcode
set up pic to upload to
can be converted to microbe, hex, Assembly
uploaded to pic
Text documents: (hex, assembly, microbe, C)
Posibility to export Flowcodes and circuits to an image
